Method 1: Fixing the DLL Error by Copying the Visgrf.dll Library to the Windows System Directory 

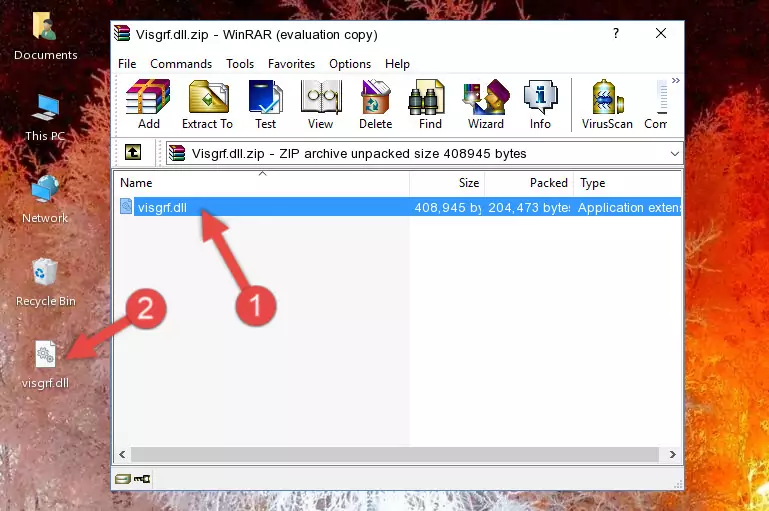

1. The file you will download is a compressed file with the ".zip" extension. You cannot directly install the ".zip" file. Because of this, first, double-click this file and open the file. You will see the library named "Visgrf.dll" in the window that opens. Drag this library to the desktop with the left mouse button. This is the library you need.

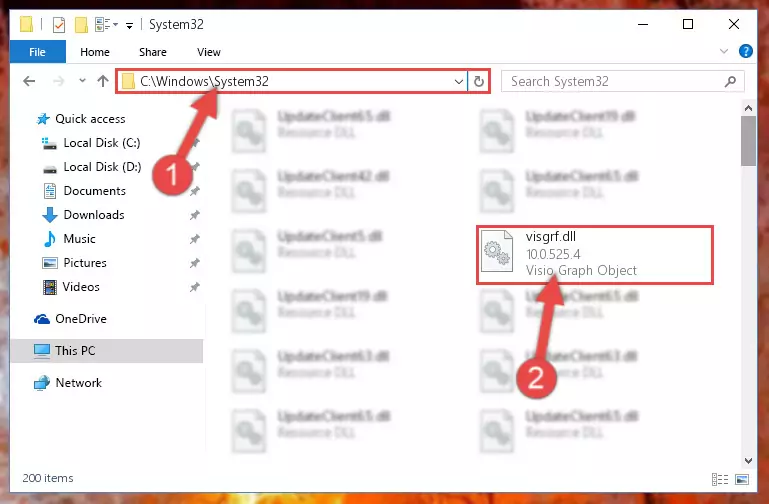

2. Copy the "Visgrf.dll" library you extracted and paste it into the "C:\Windows\System32" directory.

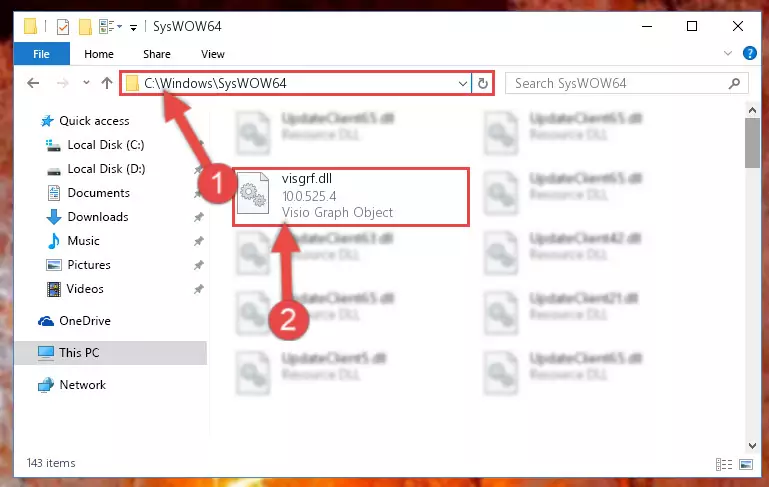

3. If your system is 64 Bit, copy the "Visgrf.dll" library and paste it into "C:\Windows\sysWOW64" directory.

   NOTE! On 64 Bit systems, you must copy the dynamic link library to both the "sysWOW64" and "System32" directories. In other words, both directories need the "Visgrf.dll" library.



4. First, we must run the Windows Command Prompt as an administrator.

   NOTE! We ran the Command Prompt on Windows 10. If you are using Windows 8.1, Windows 8, Windows 7, Windows Vista or Windows XP, you can use the same methods to run the Command Prompt as an administrator.

   1. Open the Start Menu and type in "cmd", but don't press Enter. Doing this, you will have run a search of your computer through the Start Menu. In other words, typing in "cmd" we did a search for the Command Prompt.
   2. When you see the "Command Prompt" option among the search results, push the "CTRL" + "SHIFT" + "ENTER
   " keys on your keyboard.
   3. A verification window will pop up asking, "Do you want to run the Command Prompt as with administrative permission?" Approve this action by saying, "Yes".

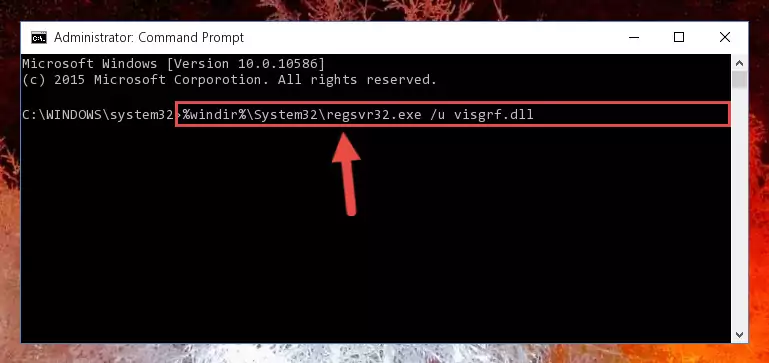

5. Paste the command below into the Command Line that will open up and hit Enter. This command will delete the damaged registry of the Visgrf.dll library (It will not delete the file we pasted into the System32 directory; it will delete the registry in Regedit. The file we pasted into the System32 directory will not be damaged).

   %windir%\System32\regsvr32.exe /u Visgrf.dll



6. If the Windows you use has 64 Bit architecture, after running the command above, you must run the command below. This command will clean the broken registry of the Visgrf.dll library from the 64 Bit architecture (The Cleaning process is only with registries in the Windows Registry Editor. In other words, the dynamic link library that we pasted into the SysWoW64 directory will stay as it is).

   %windir%\SysWoW64\regsvr32.exe /u Visgrf.dll



7. We need to make a new registry for the dynamic link library in place of the one we deleted from the Windows Registry Editor. In order to do this process, copy the command below and after pasting it in the Command Line, press Enter.

   %windir%\System32\regsvr32.exe /i Visgrf.dll



8. If the Windows version you use has 64 Bit architecture, after running the command above, you must run the command below. With this command, you will create a clean registry for the problematic registry of the Visgrf.dll library that we deleted.

   %windir%\SysWoW64\regsvr32.exe /i Visgrf.dll



9. You may see certain error messages when running the commands from the command line. These errors will not prevent the installation of the Visgrf.dll library. In other words, the installation will finish, but it may give some errors because of certain incompatibilities. After restarting your computer, to see if the installation was successful or not, try running the program that was giving the dll error again. If you continue to get the errors when running the program after the installation, you can try the 2nd Method as an alternative.

Method 2: Copying the Visgrf.dll Library to the Program Installation Directory 

1. First, you must find the installation directory of the program (the program giving the dll error) you are going to install the dynamic link library to. In order to find this directory, "Right-Click > Properties" on the program's shortcut.



2. Open the program installation directory by clicking the Open File Location button in the "Properties" window that comes up.



3. Copy the Visgrf.dll library into the directory we opened.



4. The installation is complete. Run the program that is giving you the error. If the error is continuing, you may benefit from trying the 3rd Method as an alternative.

Method 3: Doing a Clean Reinstall of the Program That Is Giving the Visgrf.dll Error 

1. Press the "Windows" + "R" keys at the same time to open the Run tool. Paste the command below into the text field titled "Open" in the Run window that opens and press the Enter key on your keyboard. This command will open the "Programs and Features" tool.

   appwiz.cpl



2. The programs listed in the Programs and Features window that opens up are the programs installed on your computer. Find the program that gives you the dll error and run the "Right-Click > Uninstall" command on this program.



3. Following the instructions that come up, uninstall the program from your computer and restart your computer.



4. 4. After restarting your computer, reinstall the program that was giving you the error.
5. This process may help the dll problem you are experiencing. If you are continuing to get the same dll error, the problem is most likely with Windows. In order to fix dll problems relating to Windows, complete the 4th Method and 5th Method.

Method 4: Fixing the Visgrf.dll Issue by Using the Windows System File Checker (scf scannow) 

1. First, we must run the Windows Command Prompt as an administrator.

   NOTE! We ran the Command Prompt on Windows 10. If you are using Windows 8.1, Windows 8, Windows 7, Windows Vista or Windows XP, you can use the same methods to run the Command Prompt as an administrator.

   1. Open the Start Menu and type in "cmd", but don't press Enter. Doing this, you will have run a search of your computer through the Start Menu. In other words, typing in "cmd" we did a search for the Command Prompt.
   2. When you see the "Command Prompt" option among the search results, push the "CTRL" + "SHIFT" + "ENTER
   " keys on your keyboard.
   3. A verification window will pop up asking, "Do you want to run the Command Prompt as with administrative permission?" Approve this action by saying, "Yes".



2. Paste the command below into the Command Line that opens up and hit the Enter key.

   sfc /scannow



3. This process can take some time. You can follow its progress from the screen. Wait for it to finish and after it is finished try to run the program that was giving the dll error again.

Method 5: Getting Rid of Visgrf.dll Errors by Updating the Windows Operating System 

Some programs need updated dynamic link libraries. When your operating system is not updated, it cannot fulfill this need. In some situations, updating your operating system can solve the dll errors you are experiencing.

In order to check the update status of your operating system and, if available, to install the latest update packs, we need to begin this process manually.

Depending on which Windows version you use, manual update processes are different. Because of this, we have prepared a special article for each Windows version. You can get our articles relating to the manual update of the Windows version you use from the links below.

Guides to Manually Update for All Windows Versions 

1. Guide to Manually Update Windows 10
2. Guide to Manually Update Windows 8.1 and Windows 8
3. Guide to Manually Update Windows 7 and Windows Vista
4. Guide to Manually Update Windows XP
